Air pneumatica rock loader series

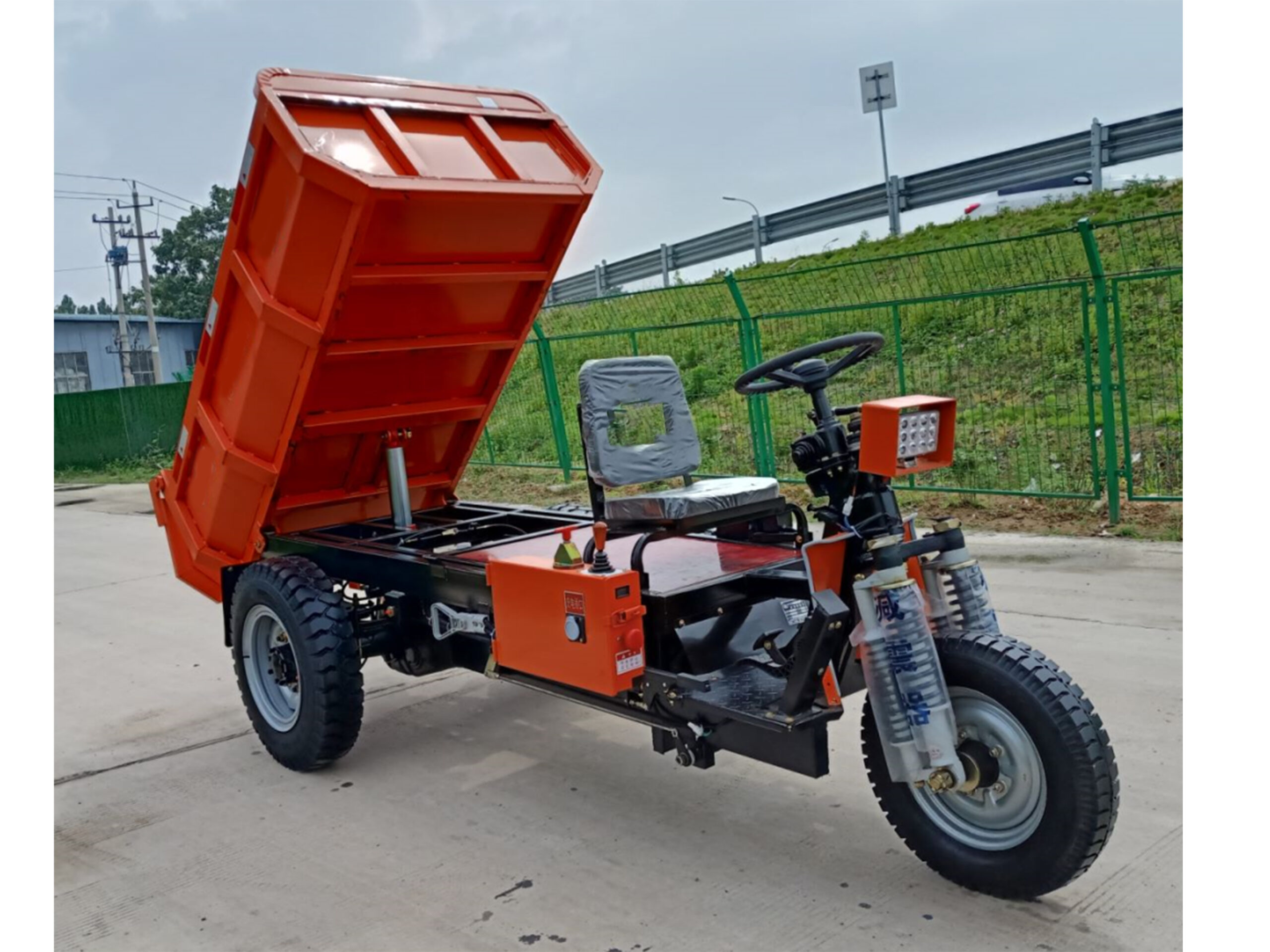

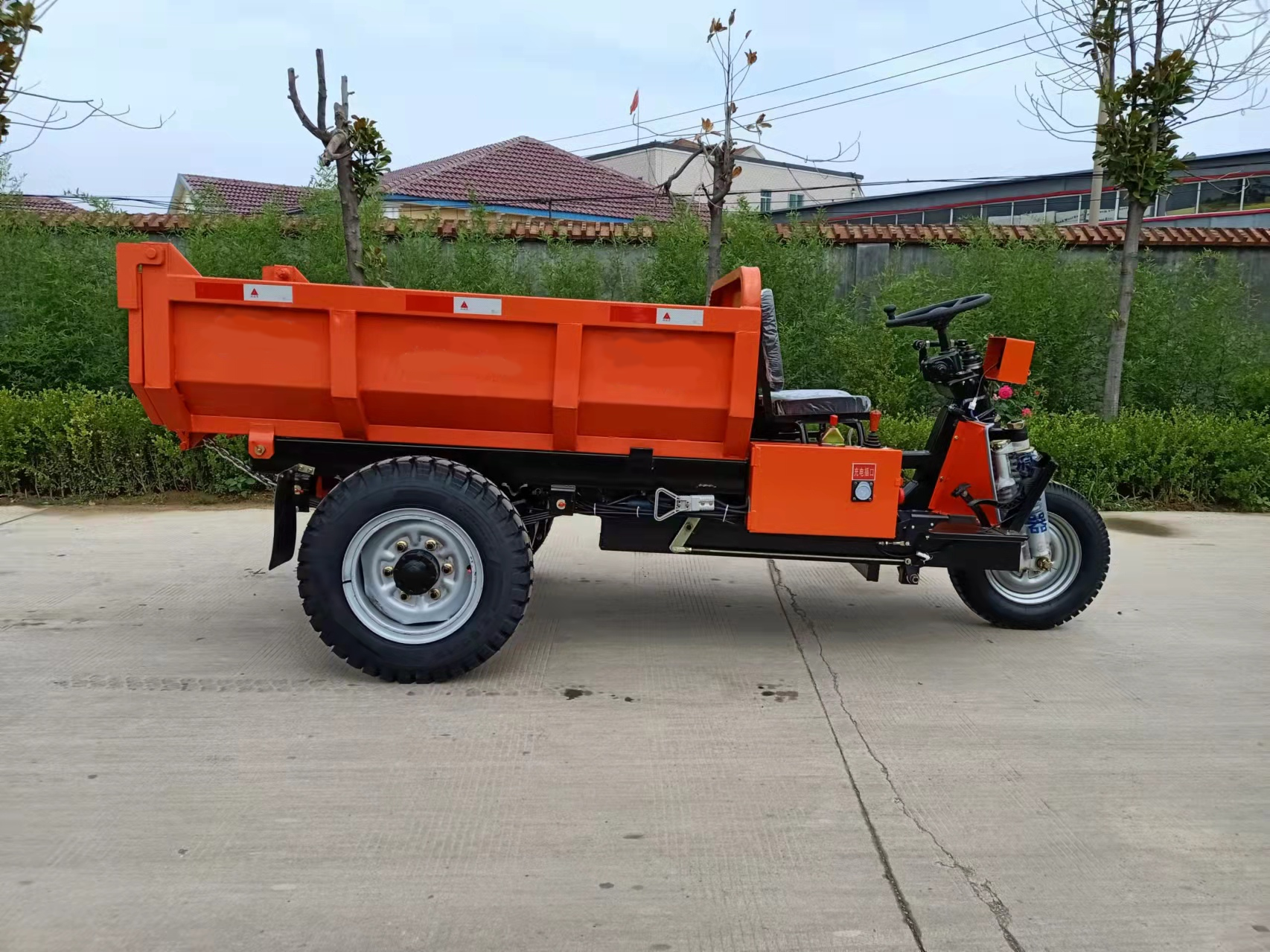

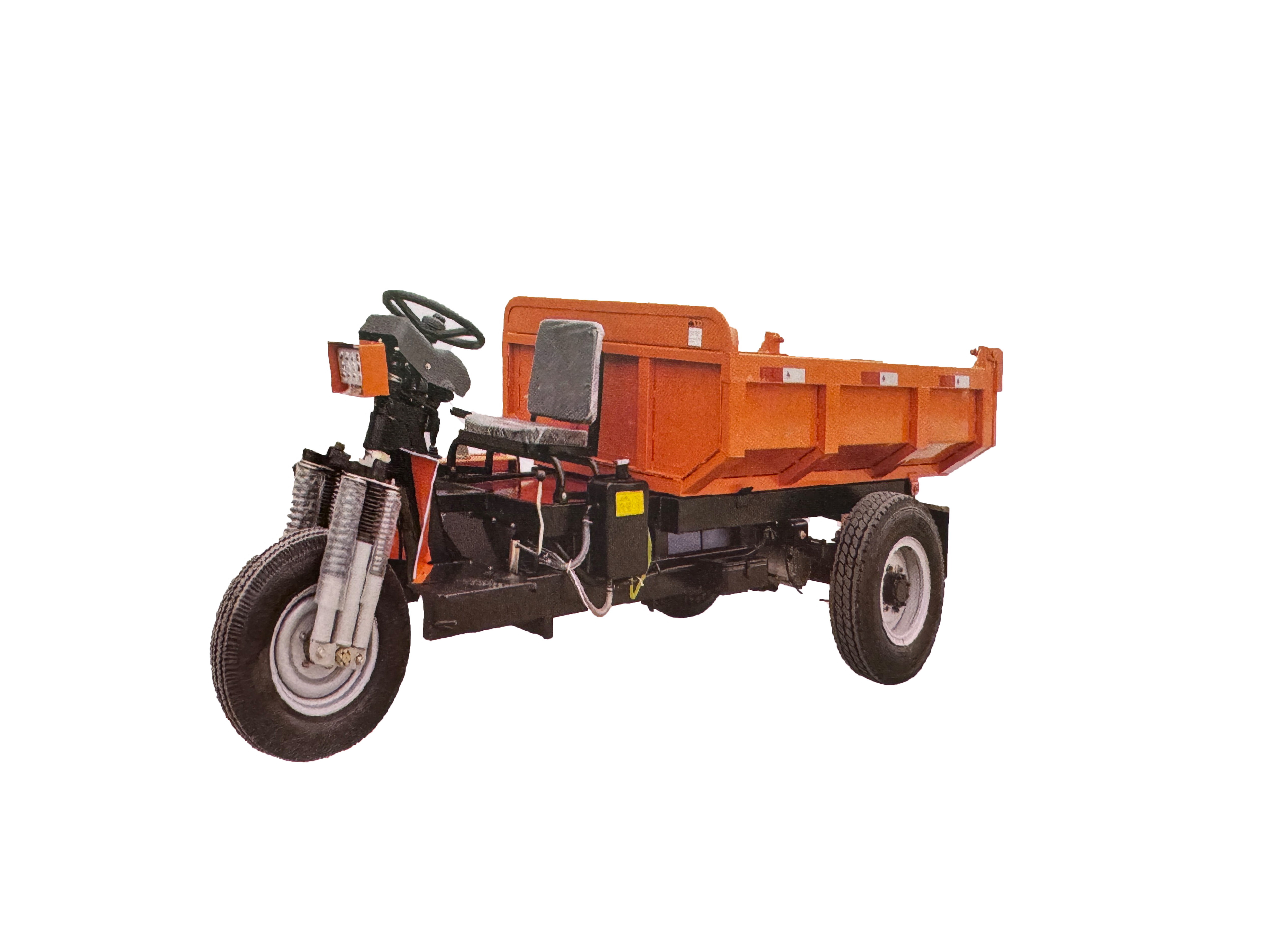

1-ton electric tricycle dump truck

  • Driving motor: 3kw AC motor
  • Battery: 6 pieces, 12V/piece, 108Ah maintenance-free lead-acid battery
  • Dimensions (mm): 3100*1250*1200
  • Car size (mm): 1600*1000*400
  • Cargo box plate thickness: ≥3mm
  • Loading: 1t
  • Car volume: 0.5㎡
  • Loading height: 1200mm

Contact us now

+86 17773243529

Product introduction

1-ton electric tricycle dump truck. Driving motor 10kw AC motor , Battery 12 pieces, 6V/piece, 200Ah maintenance-free lead-acid battery , Dimensions (mm) 3800*1380*1250,  Car size (mm) 2200*1380*450,  Loading 3.5t,  Car volume 1.2㎡.

Electric tricycle transport vehicles for mines can transport ore, clean up slag, transport tools, personnel, etc. in the mine tunnel. Electric dump trucks have no heat, no smoke, no noise, and no pollution, which brings good news to the miners who are suffering from the smoke and fire of diesel mine tricycles and maintain the air quality in the roadway. Three-layer craftsmanship of the whole vehicle, original headlights, and mirrors. Multi-layer tires, heavy beams, thicker carriages, and suspended rear axles. Easy to drive, flexible direction, heavier chassis, no skidding. (Customized carriages according to the size of the roadway) is a battery transportation tool used by factories or mines to transport raw materials, semi-finished products, finished products, ore, slag and other materials.

Details of main parts

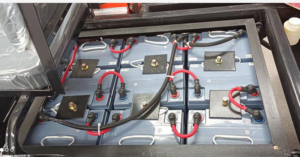

Battery

With a device can quickly replaced battery , which effectively saves charging time and improveswork efficiency. Maintenance-free battery has sufficient capacity, stable quality andlong life.

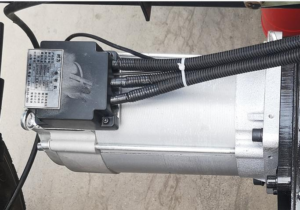

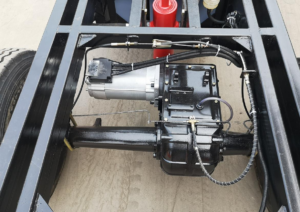

Motor

5KW AC asynchronous motor,waterproof,anti-magnetic,strong overload capacity,low temperature rise after long-term load,with ramp parking lock function.

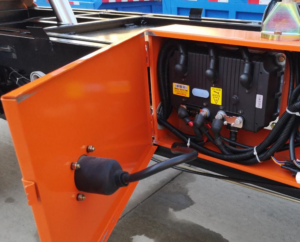

Controller

Small size,light weight,high reliability,fast response and so on.The computer can read vehicle parameters,with energy feedback function,and protection functions such as current limiting, overcurrent, overtemperature, and stall.

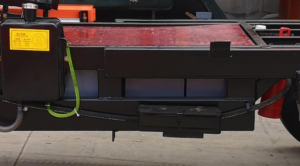

Frame

Widened and thickened 50*140*5mm double-layer double-beam frame,which is thicker than similar products and has along service life.

Rearaxle

The rear axle of the reinforced diesel vehicle is modified to the electric axle,patented technology.Large torque,large load,good quality.

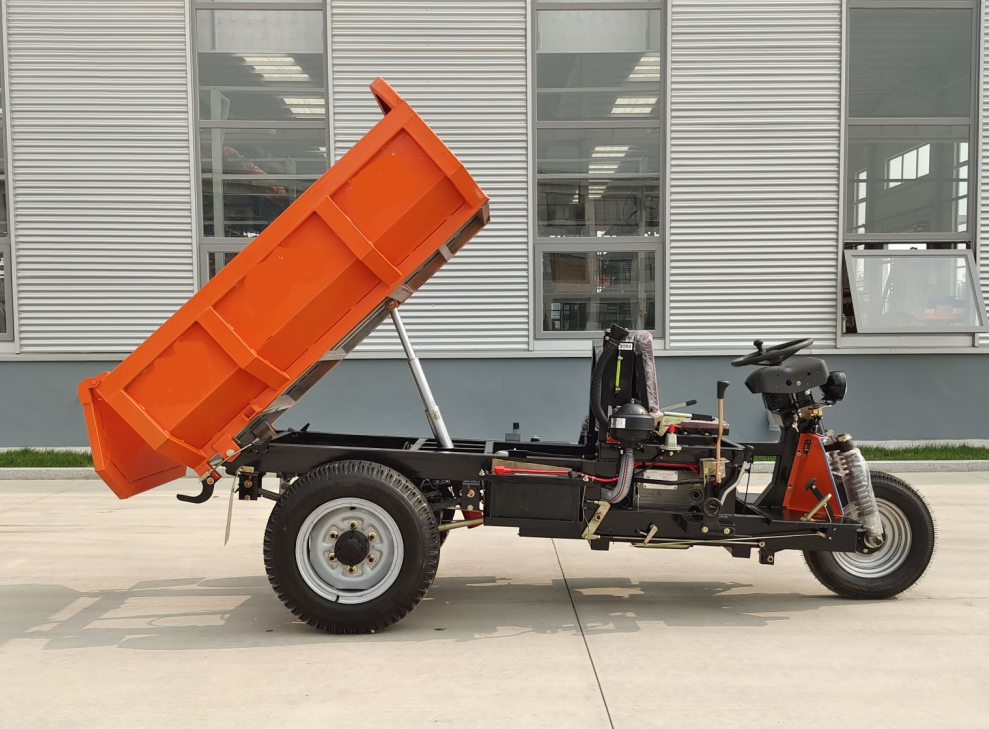

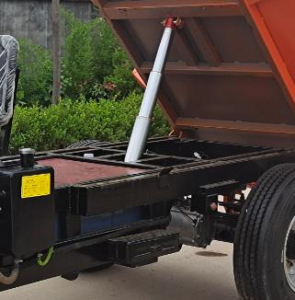

Lifting system

Lifting 10 tons of thick three-section oil top,stronger stability and greater unloading weight.

Tyre

Thickened steel wire tires for mines,with many layers and thick tire walls.long lasting.

Technical Specifications

Motor model/power(AC)3KW
Cargo box plate thickness(bottom)3mm(side)3mm
Tire model(Front)450-14
(Rear)600-14
Cargo box dimension
(outer diameter
(L)1600mm*(W)1000mm
*(H)400mm
Dimensions(L)3100mm*(W)1250mm
*(H)1200mm
Climbing ability(full load)≤6°
Turning radius≤4200
Cargo box volume0.5m³
Number of batteries6 pieces.12V.105Ah
maintenance-free
Voltage72V
Track width1150
Rated load capacity1000Kg
Control systemIntelligent controller

Operation video

Mining site service

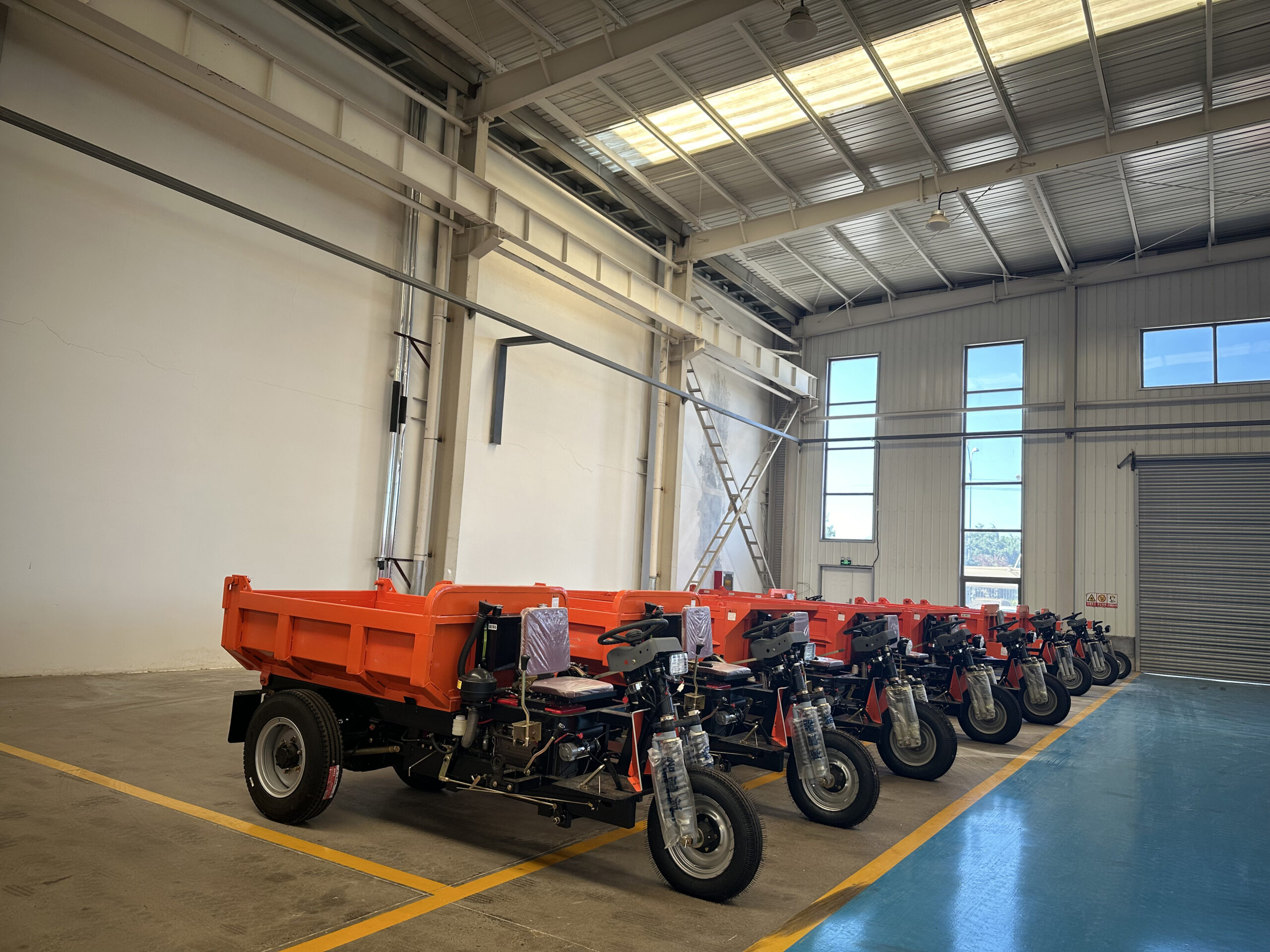

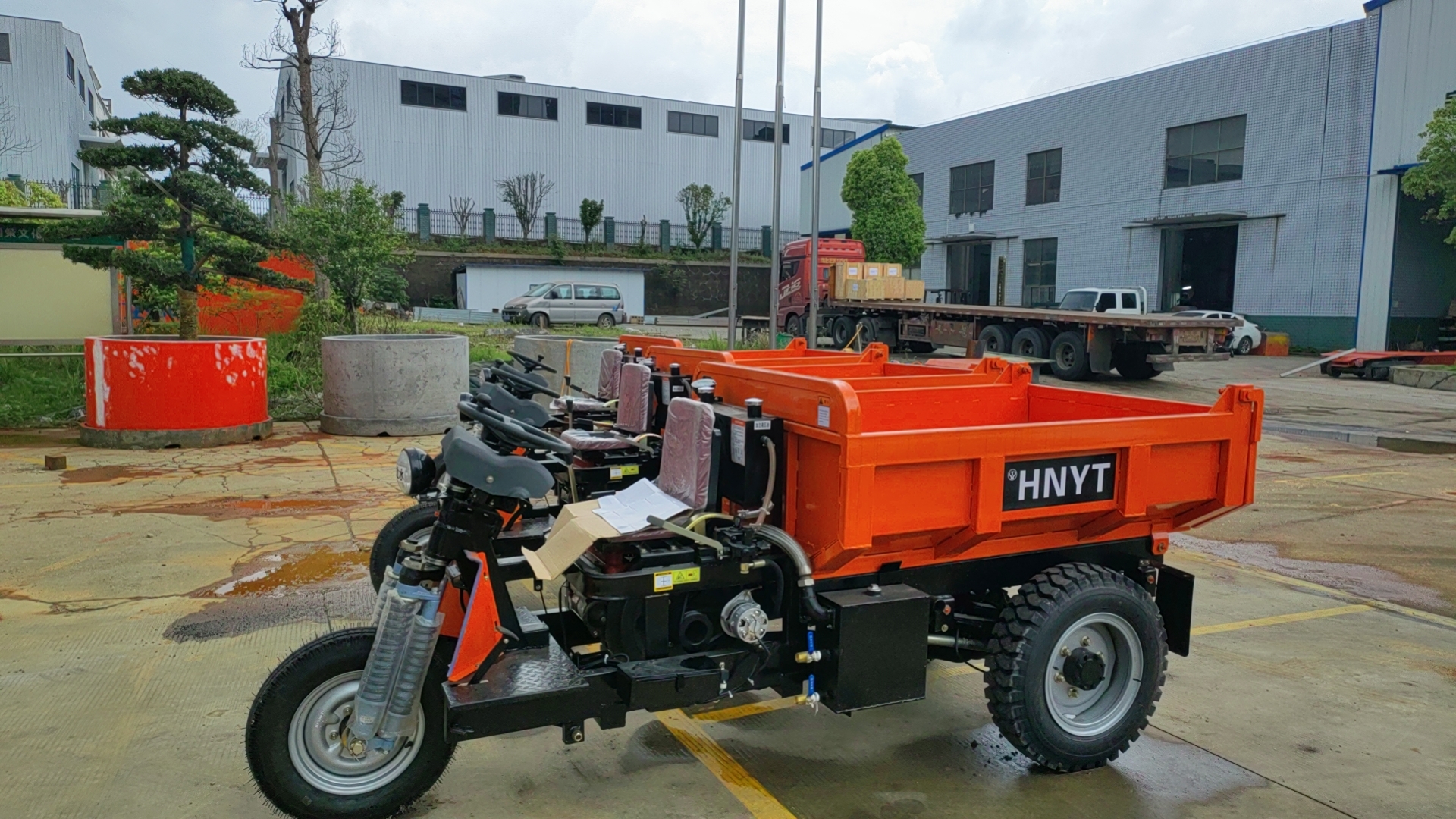

Factory environment

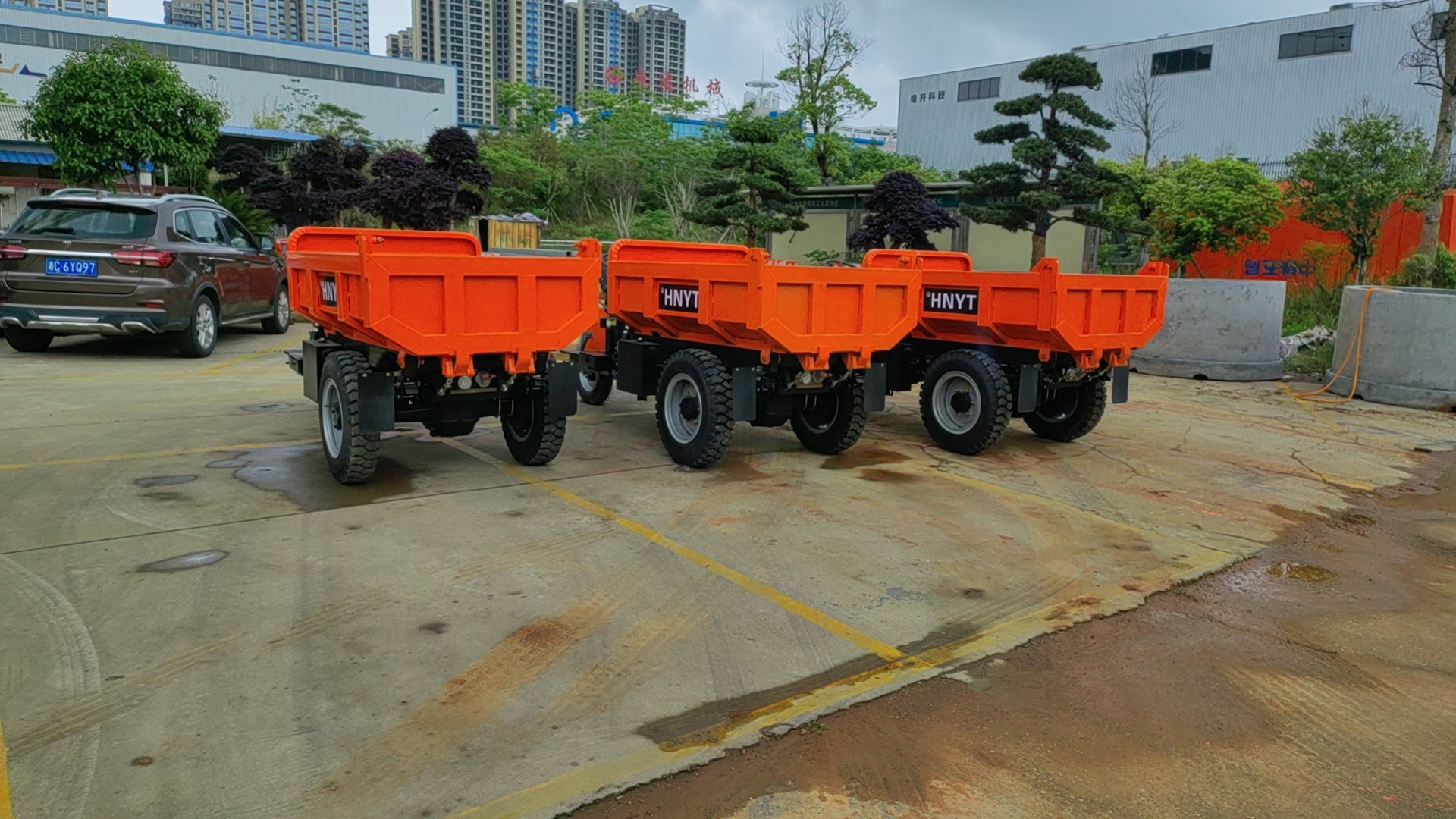

Export shipment
