35-ton mining truck
- Load: 35t
- Cargo box volume: 16m³
- Transmission model: Fast weighted ten gears 10JS200
- Cargo box size: 5500mm*2400mm*1300mm
- Overall dimension: 7500mm*2500mm*2600mm
- Cargo box plate thickness: bottom 14mm side 8mm
- Cab: side flat head mining cab (warm air, fan, front roll)
Contact us now
+86 17369222201
Product advantages
- Front-end design:
The vehicle’s exterior design, tailored for mining operations, features a pointed front end. This design allows for a smaller turning radius and better maneuverability compared to similar-sized vehicles.
- Safety shed design:
6mm thick anti-rockfall safety canopy with adjustable height design, allowing it to be lowered to pass through irregular tunnels.
- A large exhaust gas purification device:
This design effectively removes 80% of the odor and black smoke from exhaust gases. Additionally, it prevents engine backflow due to driver error, significantly improving vehicle emission standards and quality reliability.
Detail Display
Mercedes-Benz axles offer excellent off-road capability and load-bearing capacity, with a focus on heavy-duty truck development. The multi-link parallel dual rear axles provide superior braking performance, stabilize the vehicle body, and increase load capacity.
The industry standard front axle supports a load of 6.5 tons, while our independently designed front axle supports a load of 7.5 tons. It features an independent circulating hydraulic braking system with combined parking and service braking, capable of supporting 18 tons on a single axle.
The industry standard for chassis is made of steel plates 270*80*（8+8）mm thick. Our company’s chassis is made of steel plates 270*80*（10+10）mm thick, with high yield strength and tensile strength, providing stable and reliable structure and long service life.
Screw-together frame, elastic body, enhanced with reinforced rib design, strengthened frame, does not interfere with engine component installation
Details of main parts
Front of the car
The appearance of the vehicle is combined with the use of the mine. The front part of the vehicle is pointed, and the turning radius is smaller under the same size, so that the passability is better.
Motor
diesel engine， Powerful, alloy material selection, small size, light weight, low noise.
Safety shed
The first-line brand Inbor intelligent controller has the characteristics of small size,light weight,high reliability,fast response and so on.The computer can read vehicle parameters,with energy feedback function,and protection functions such as current limiting, overcurrent, overtemperature, and stall.
Tyre
Thickened steel wire tires for mines,with many layers and thick tire walls.long lasting.
Technical Specifications
| Fuel Type | Diesel |
|---|---|
| Engine Model | Sinotruk 375 |
| Engine Power | 276KW(375HP) |
| Gear Box Model | reinforced ten-speed |
| Rear Axle | Mercedes-Benz cast steel wheel reduction double rear axle(optional Hande axle) |
| Front Axle | 800T |
| Braking System | Wet brake |
| Maximum Gradient Ability | 25% |
| Tire Model | 1000-20 |
| Overall Vehicle Dimensions | L7400mm*W2480mm*H2650mm |
| Cargo Box Dimensions | L5400mm*W2400mm*H1000mm |
| Cargo Box Plate Thickness | Bottom14mmside8mm |
| Cargo Box Volume(m³) | 12.2 |
| Load Capacity(in tons) | 35 |
Operation video

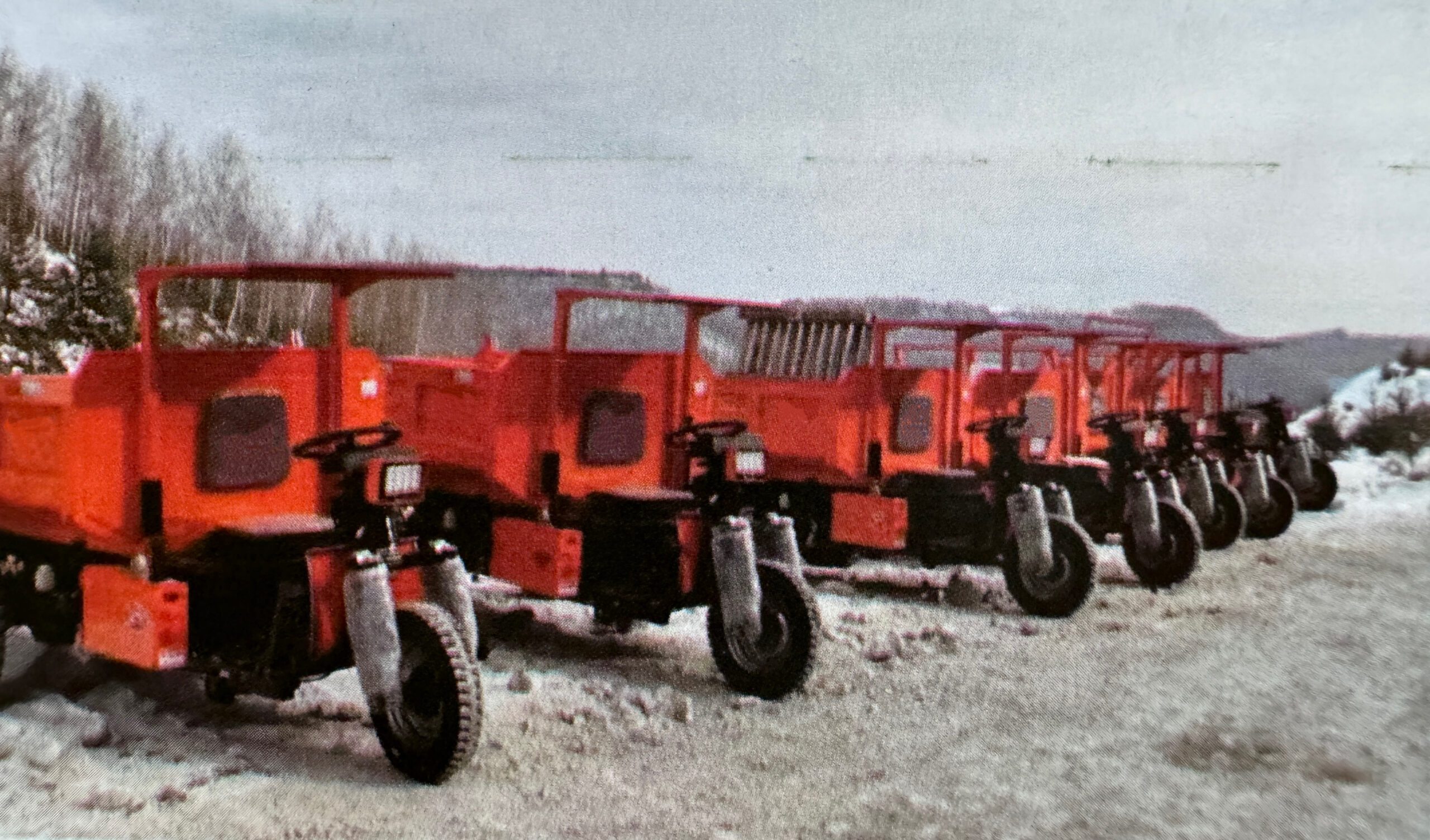

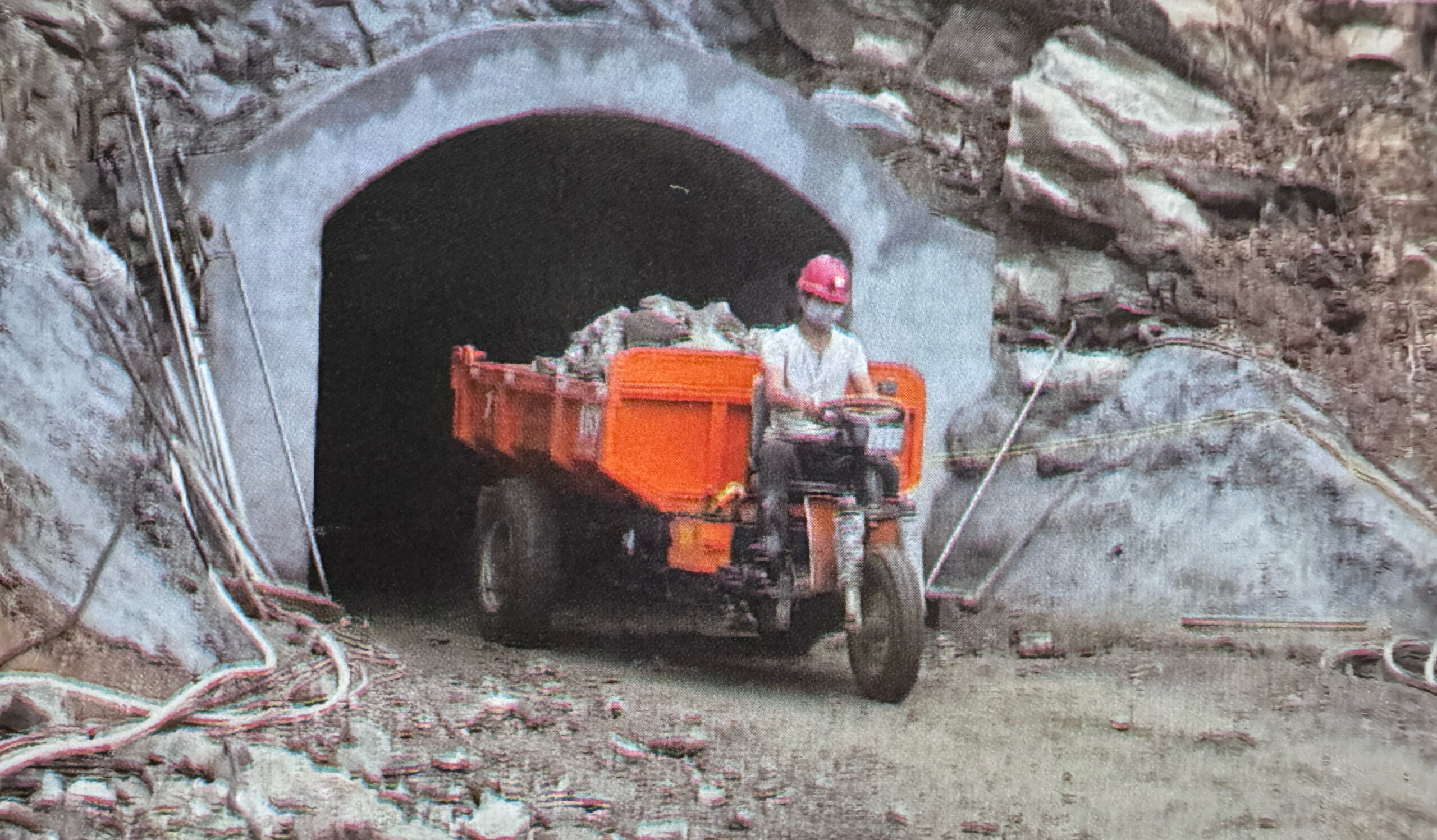

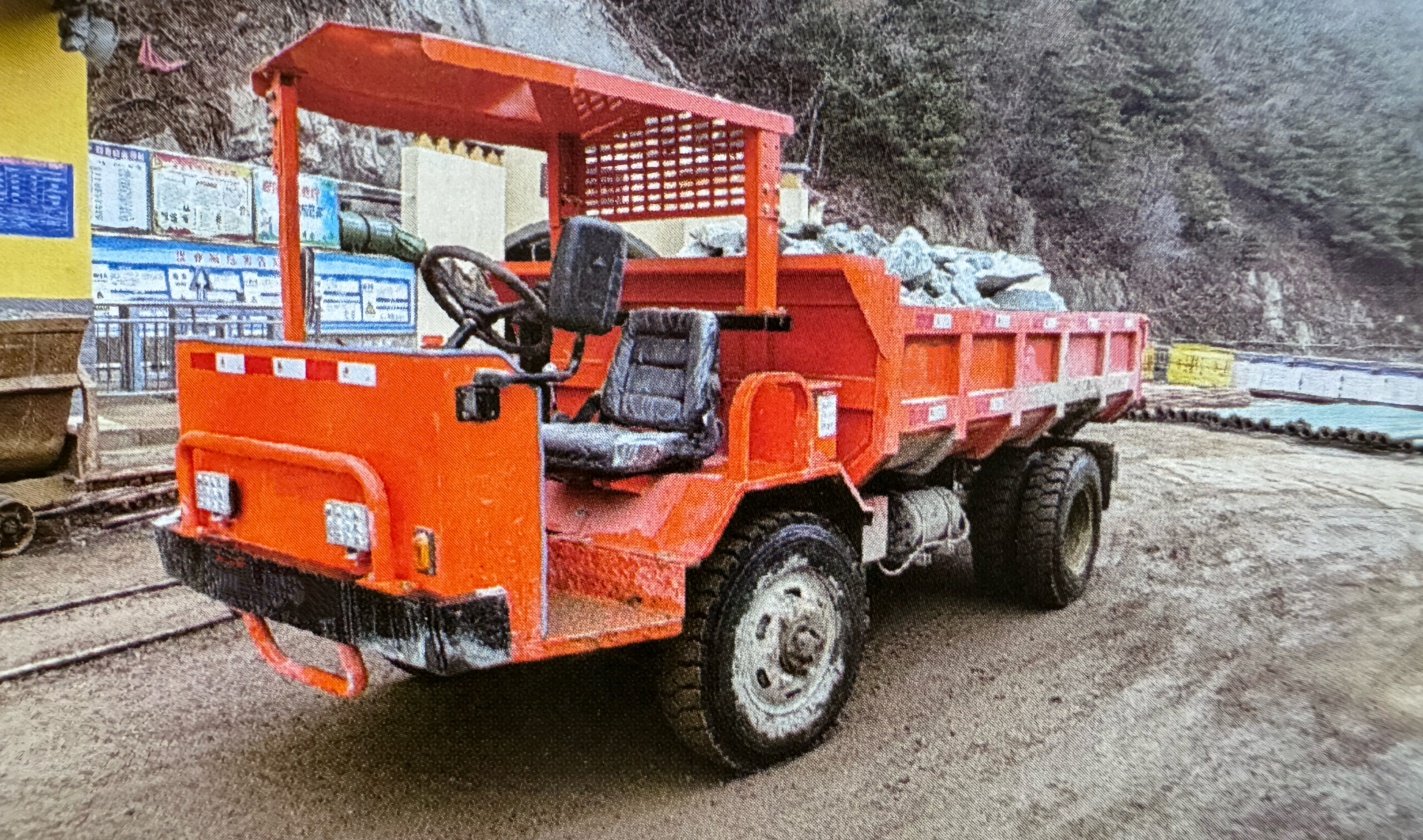

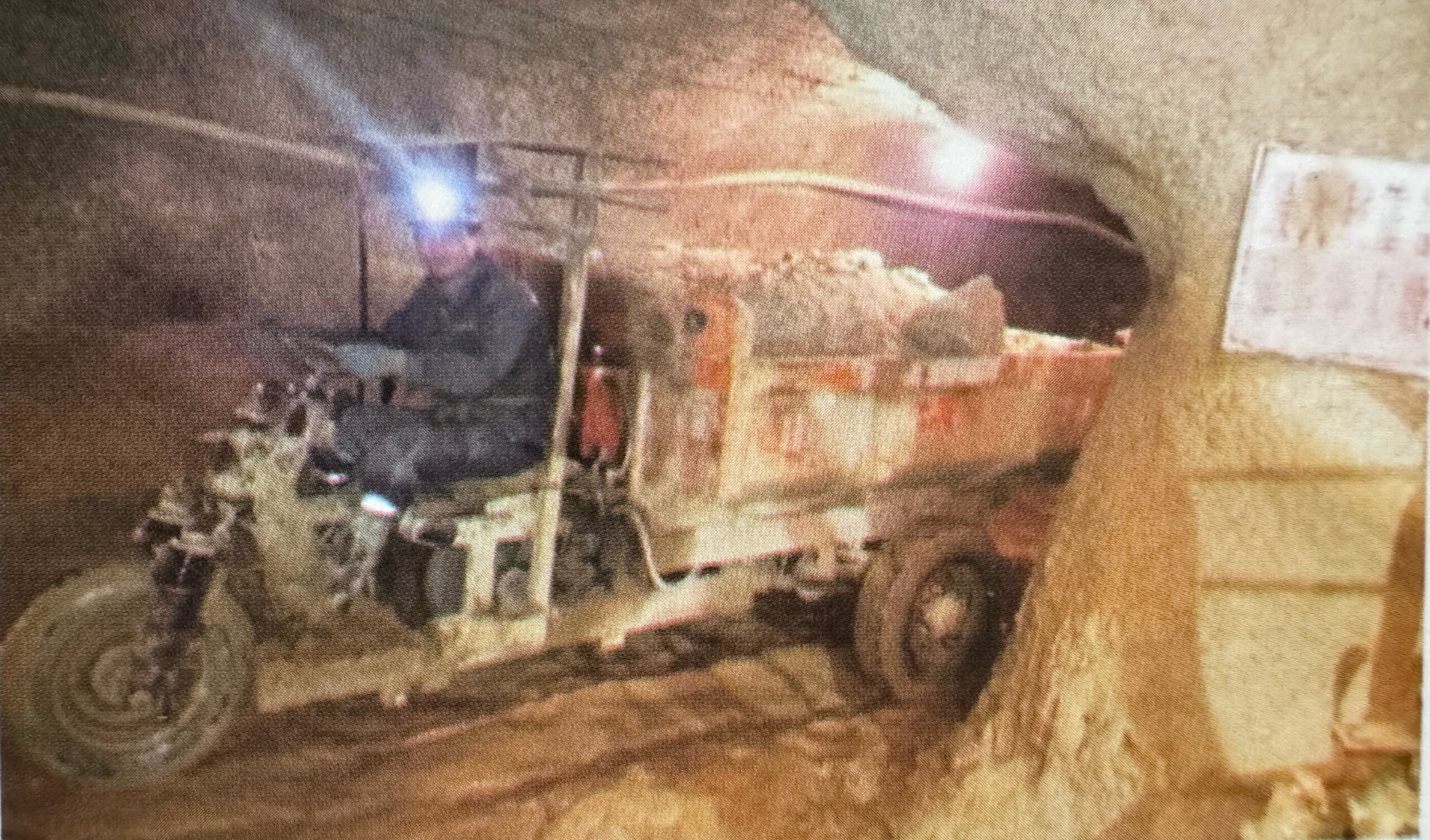

Product site

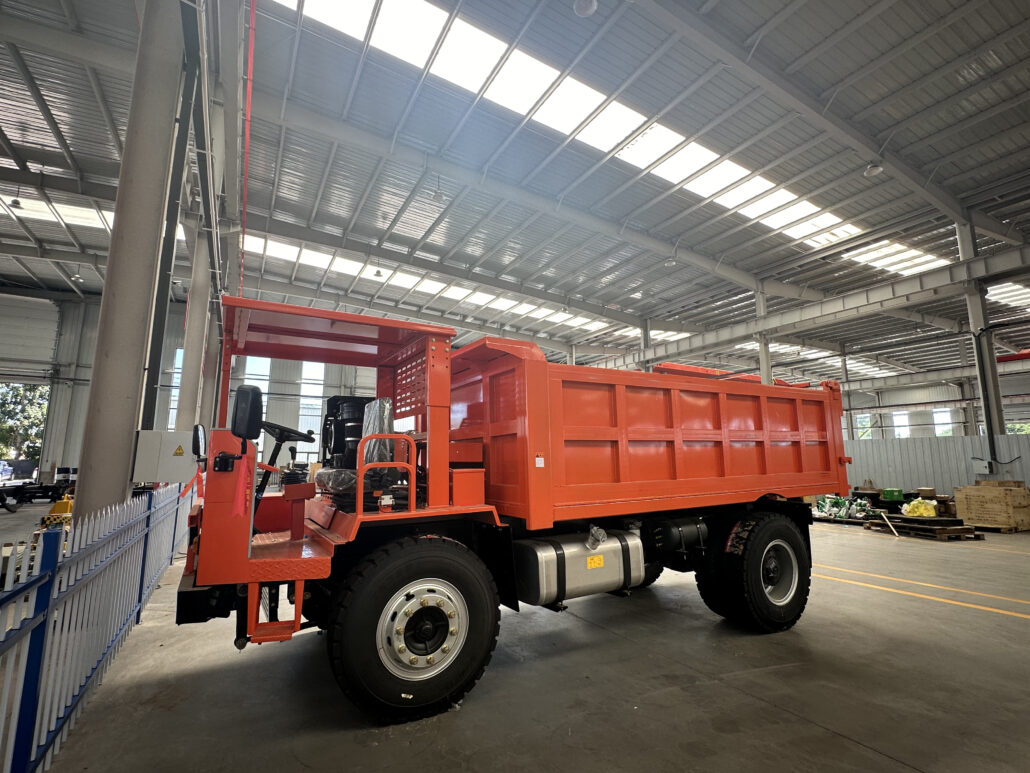

Factory environment
