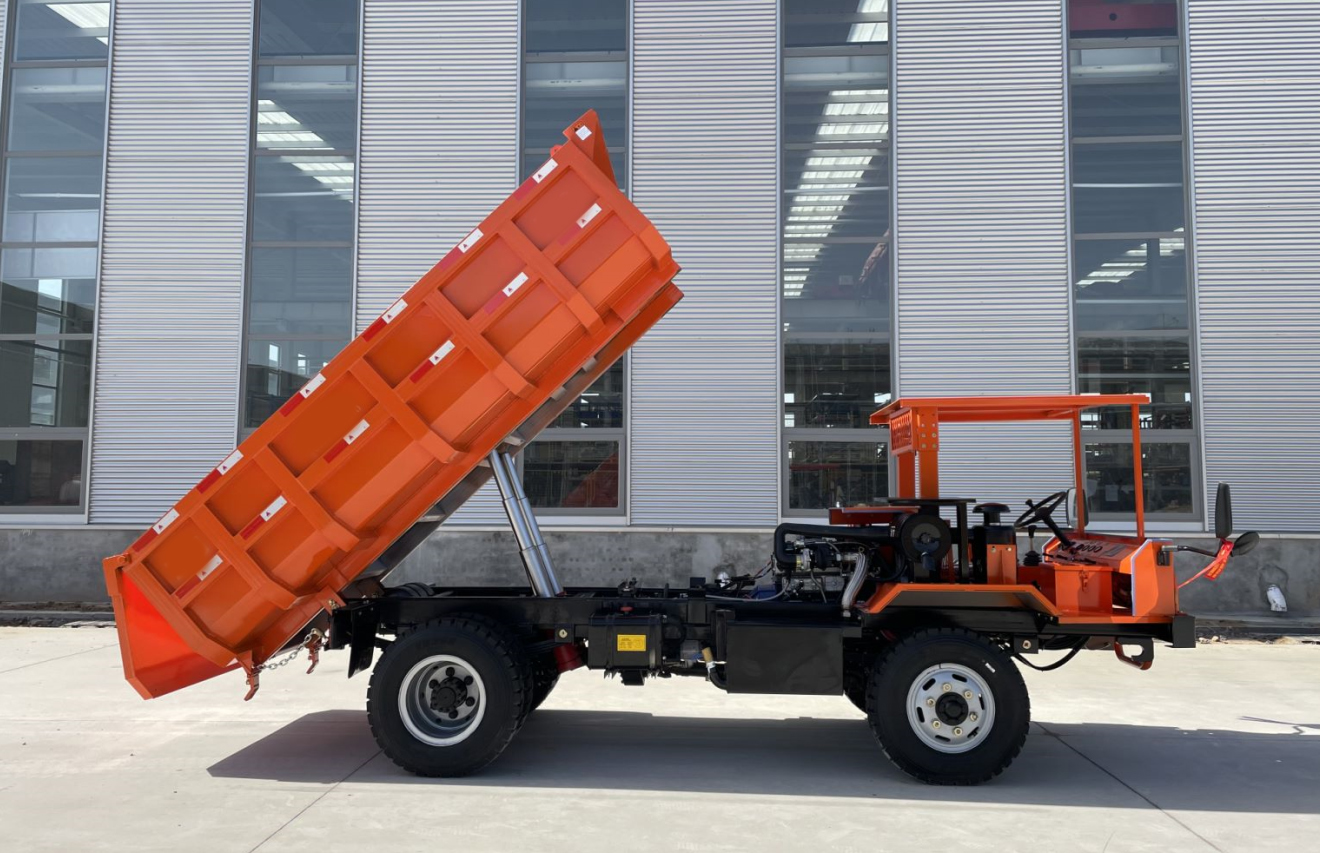

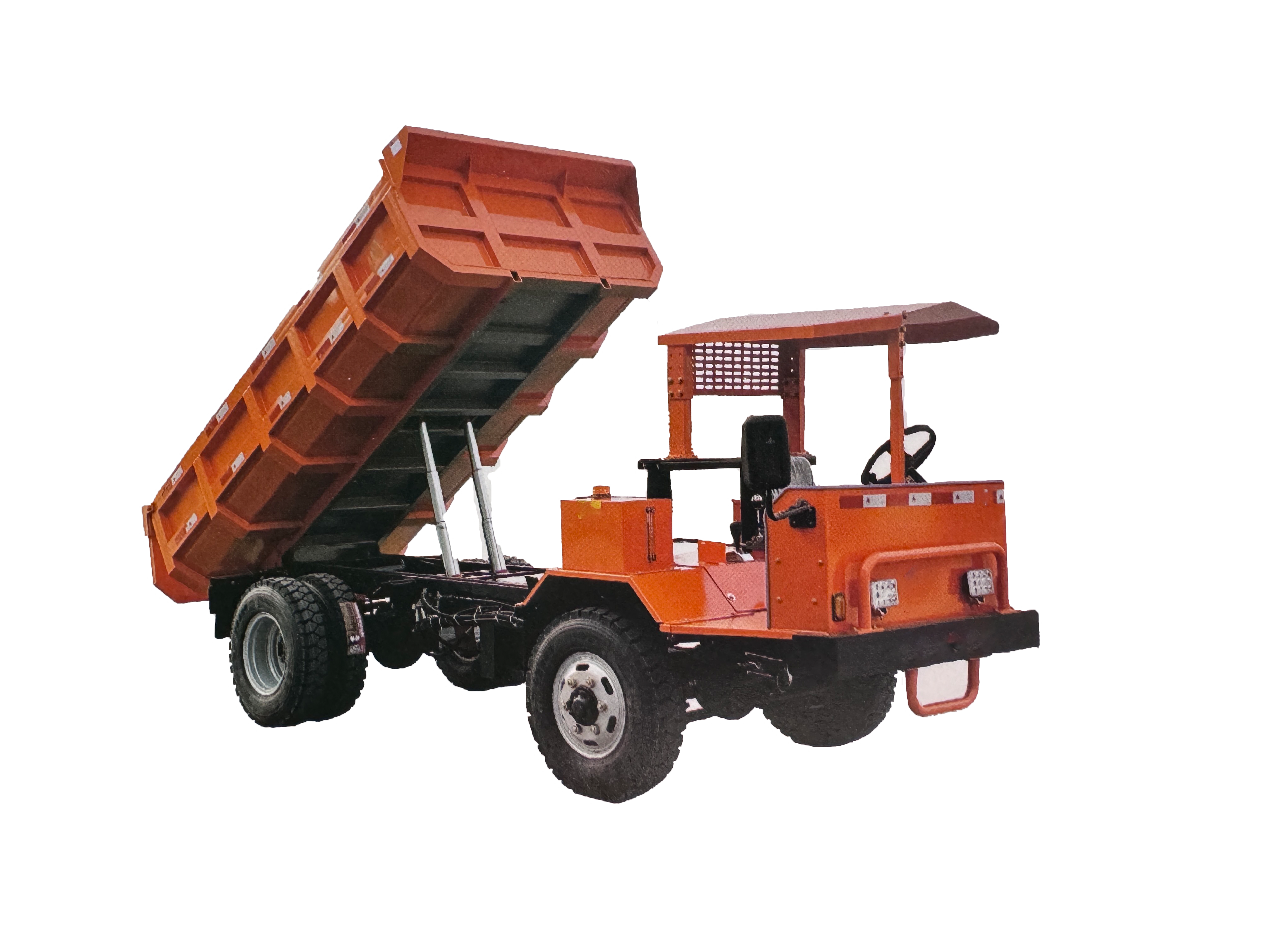

8-ton electric dump truck for mining



  • Load: 8 tons
  • Vehicle size: length 4900mm*width 1800mm*height 2000mm
  • Cargo box size: length 3200mm*width 1800mm*height 600mm
  • Battery: 72V, 600A ternary lithium battery
  • Motor: 10KW AC motor
  • Steering system: hydraulic steering assist
  • Drive mode: four-wheel drive
  • Braking method: air-extinguishing brake

Contact us now

+86 17352647687

Product description

The mining four-wheel-drive truck is robust and durable, with strong climbing ability, suitable for various mine tunnel environments, especially narrow tunnels, narrow roads, and inclined conditions. Electric transport vehicles used in mines can transport ore, slag, tools, personnel, etc. Electric dump trucks do not heat up, emit smoke, produce noise, or cause pollution, bringing relief to miners who suffer from the smoke and fires of internal combustion engine vehicles, while maintaining air quality in the tunnels. The vehicles feature high-quality three-layer paint, original headlights, and rearview mirrors. Premium multi-layer tires, reinforced crossbeams, and reinforced cargo compartments. Easy driving, flexible steering, and a heavy-duty chassis that does not slip. (Customized according to tunnel size) Suitable for transporting raw materials, semi-finished products, finished products, ore, slag, and other materials in factories or mines.

Details of main parts

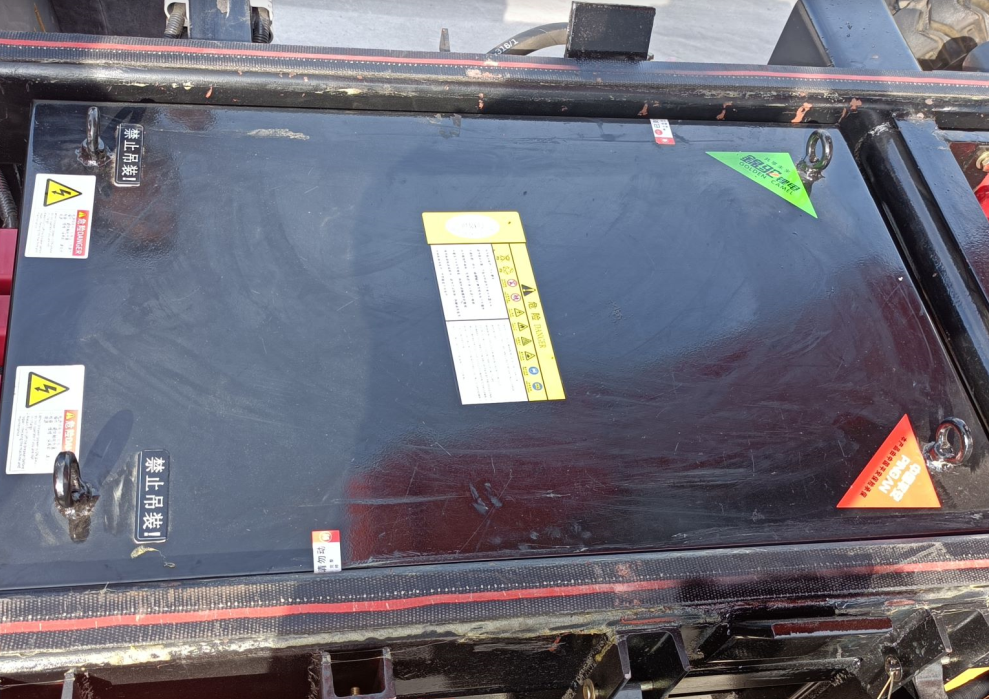

Battery

With a device can quickly replaced battery , which effectively saves charging time and improveswork efficiency. The maintenance-free battery has sufficient capacity, stable quality andlong life.

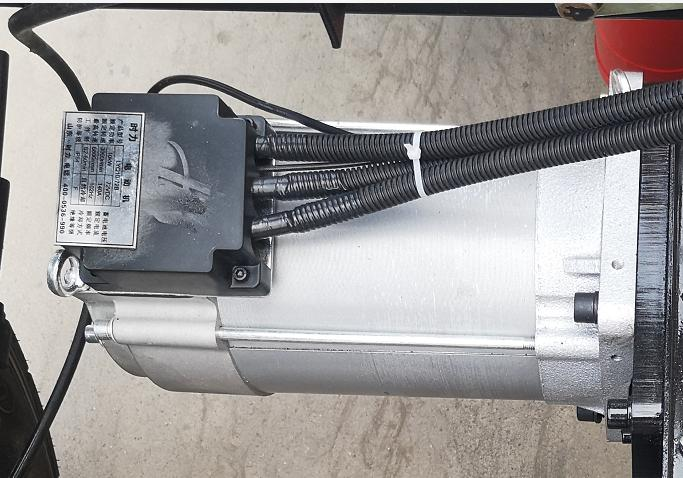

Motor

Waterproof,anti-magnetic,strong overload capacity,low temperature rise after long-term load,with ramp parking lock function.

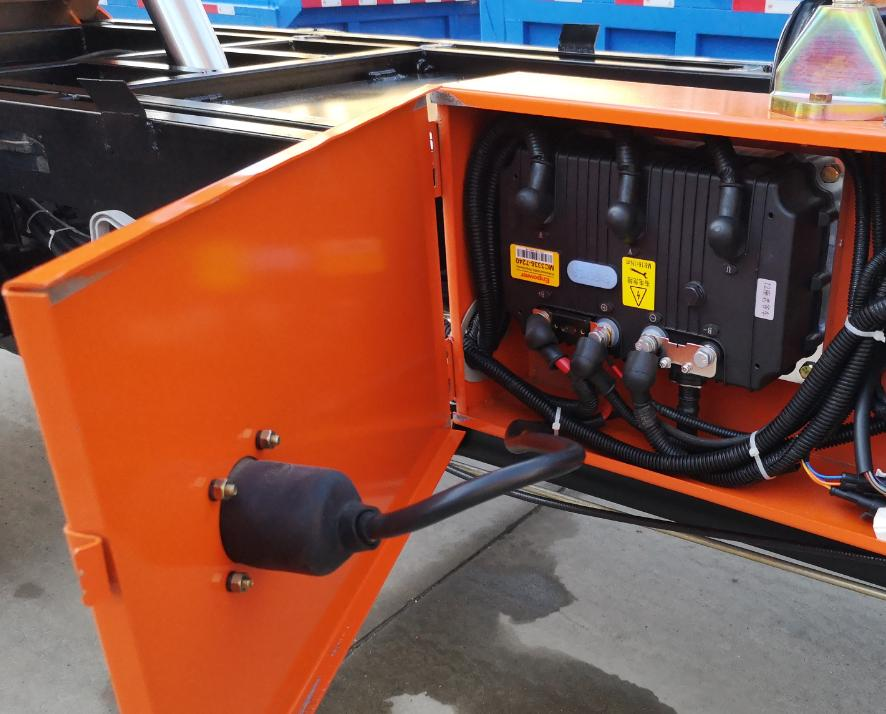

Controller

The characteristics of small size,light weight,high reliability,fast response and so on.The computer can read vehicle parameters,with energy feedback function,and protection functions such as current limiting, overcurrent, overtemperature, and stall.

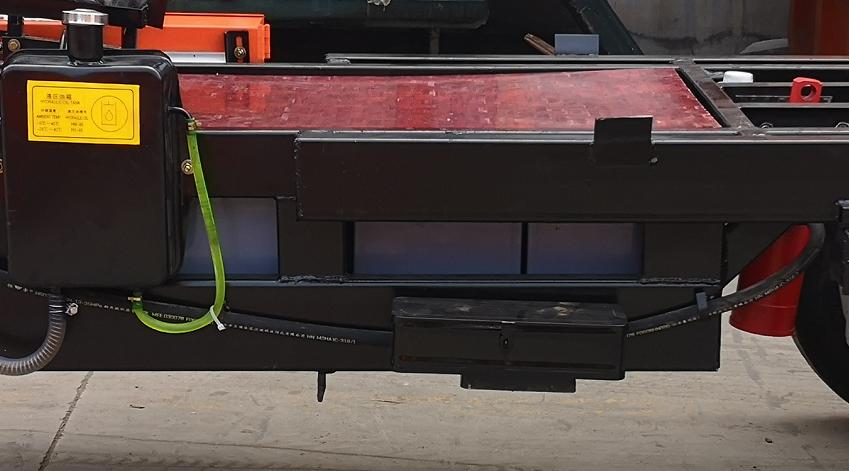

Frame

Widened and thickened 50*140*5mm double-layer double-beam frame,which is thicker than similar products and has along service life.

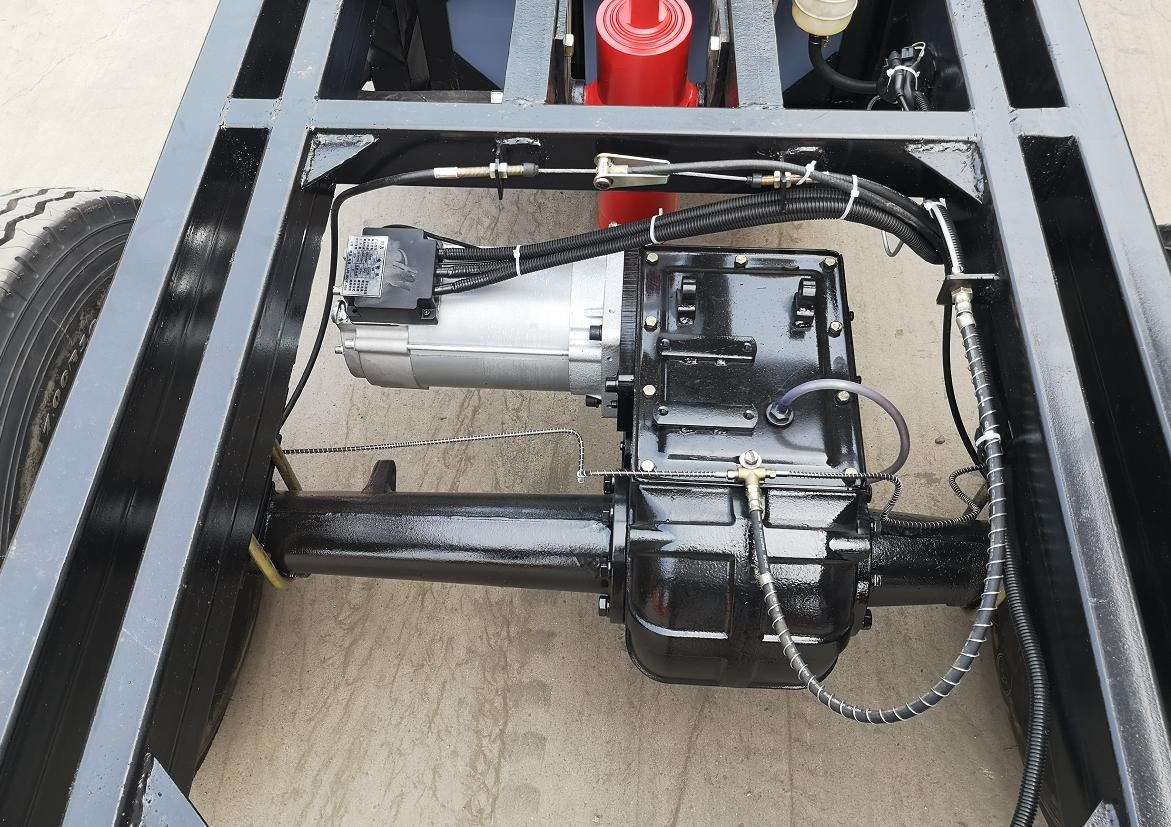

Rearaxle

The rear axle of the reinforced diesel vehicle is modified to the electric axle,patented technology.Large torque,large load,good quality.

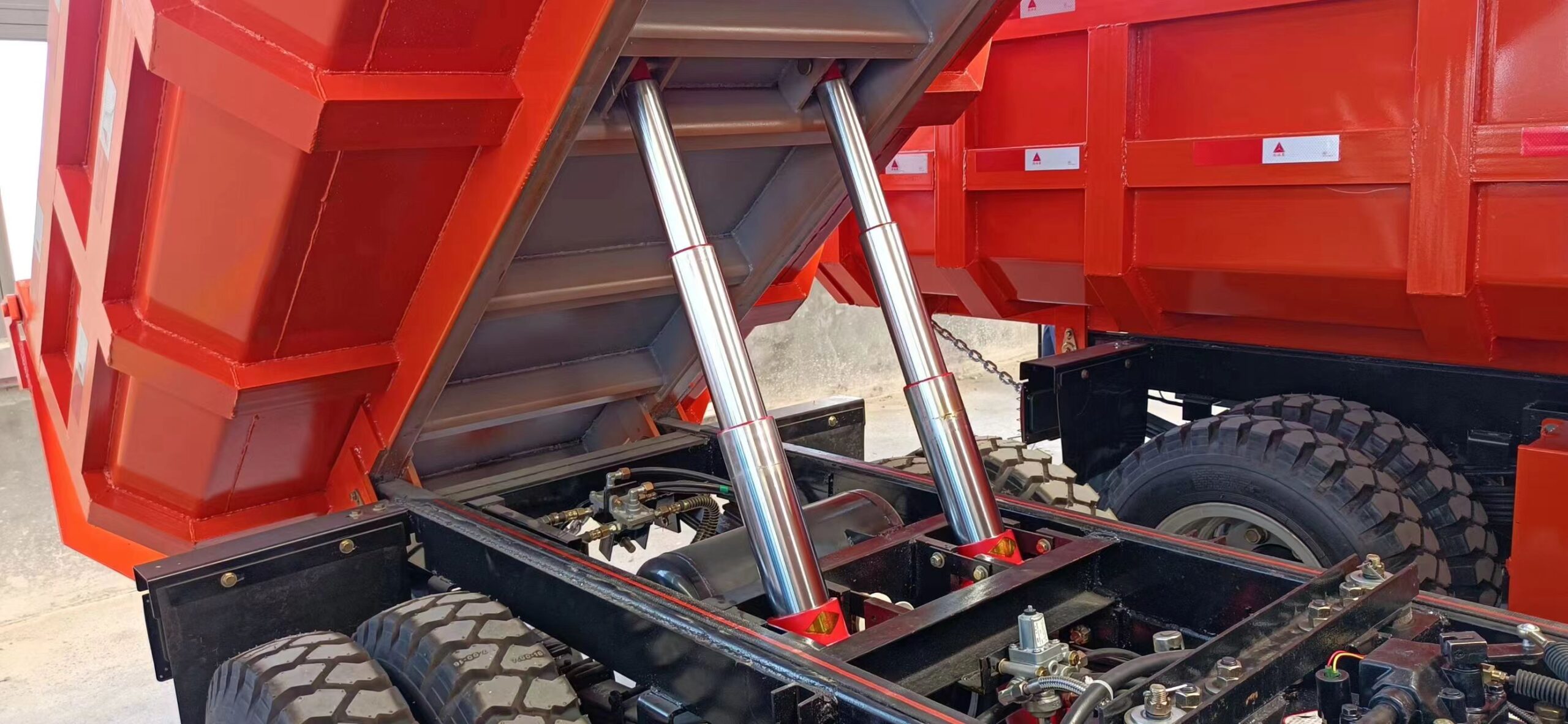

Lifting system

Lifting 10 tons of thick three-section oil top,stronger stability and greater unloading weight.

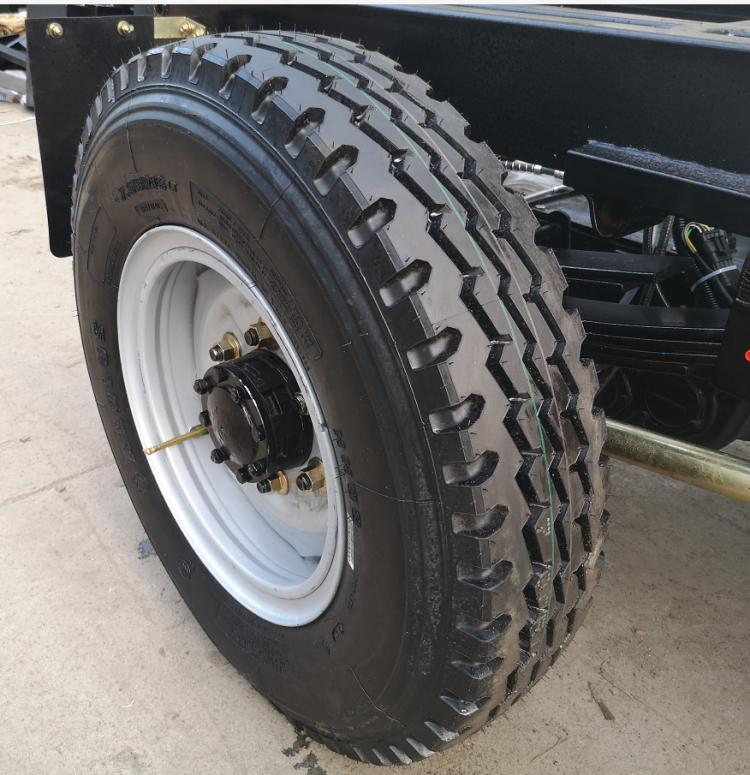

Tyre

Thickened steel wire tires for mines,with many layers and thick tire walls.long lasting.

Technical Specifications

BatteryCATL 600Ah lithium-ion batten
Voltage72V
Drive modeFour drive
Brake modepneumatic brake
Motor powerFront and rear 10KW.
Cargo volume3m³
Rated load capacity8000Kg
Wheelbase1600mm
Tire model(Front)750-16(Radial tire)(Double radial tire)(Rear)750-16
Control systemIntelligent controller
]Overall Dimension(L)4900mm*(W)1800mm*(H)2000mm
Cargo box dimension(outer diameter)(L)3200mm*(W)1800mm*(H)600mm
Cargo box board thicknessBottom8mm/Side3mm
